- 4-digit LCD digital display, 10000 display count
- Auto range, 2/s sampling rate
- Peaks hold
- Store 99 sets of data
- RS-232 interface
- Data hold
- Auto power off
- Overload indication, low battery indication
UNI-T UT251C Leakage Current Clamp Meter High Sensitivity
Price :
৳13000
Estimated Shipping Time: Deliveries take up to 2-3 days after you place your order.
Uses: Lab Essentials
Product SKU: om08432saN

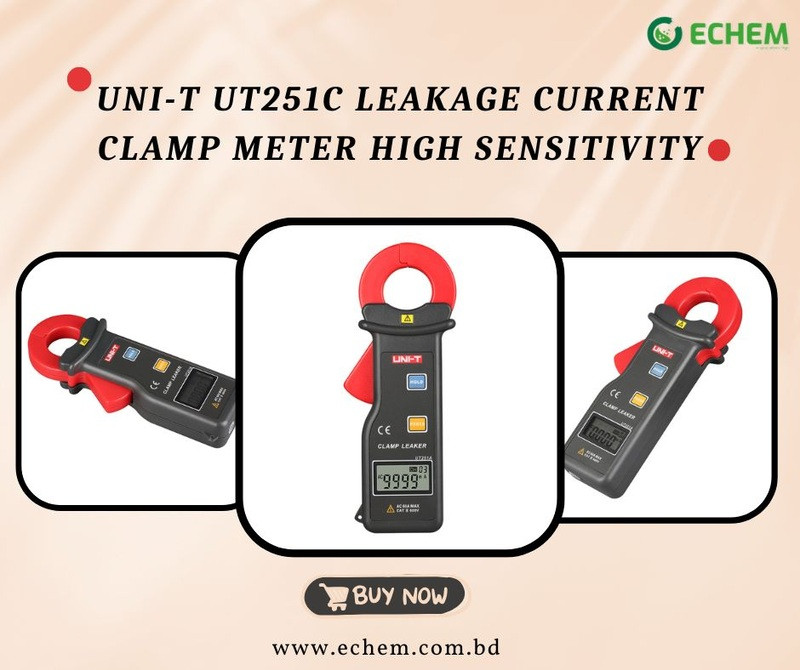

UNI-T UT251C Leakage Current Clamp Meter High Sensitivity
UT251C high-accuracy high sensitivity Leakage Current Clamp Meter is designed for testing AC leakage current detection. These high-resolution meters are great for applications such as checking leakage current for motors, home appliances, and other electrical equipment up to 600A.
Applications of Leakage Current Clamp Meter:
- Checking leakage current for motor, home appliances, and other electrical equipment up to 600A.
- 4-digit LCD digital display, 10000 display count
- Auto range, 2/s sampling rate
- Peaks hold
- Store 99 sets of data
- RS-232 interface
- Data hold
- Auto power off
Specifications of UT251 Series High Sensitivity Leakage
Current Clamp Meters :
|
Specifications |
Range |
UT251A |
UT251C |
|
Leakage current (A) |
0.001mA～60A |
±(1.5%+5) |
±(1.5%+5) |
|
60A～199.9A |
±(2%+5) |
||
|
200A～300A |
±(3%+5) |
||
|
300A～600A |
±(4%+5) |
||
|
Voltage
(Freq.) 0V~600V (50Hz/60Hz) |
√ |
√ |
|
|
Resolution |
1uA |
1mA |
|
|
Features |
|||
|
Display |
4 digits
LCD |
√ |
√ |
|
Clamp size |
25mm
x 30mm |
35mm
x 40mm |
|
|
Auto range |
√ |
√ |
|
|
RS-232 |
√ |
√ |
|
|
Data storage |
99 |
99 |
|
|
Peak/Data hold |
√ |
√ |
|
|
Overload protection |
OL |
√ |
√ |
|
Auto power off |
5
minutes |
√ |
√ |
|
Low battery indication |
≤7.2V |
≤7.2V |
|
|
Over-range display |
OL |
√ |
√ |
|
Test mode |
Clamp CT,
integral mode |
√ |
√ |
|
General Characteristics |
|||
|
Power |
9V
battery (6F22) |
||
|
Display |
32mm
x 15mm |
||
|
Product color |
Red and
grey |
||
|
Product net weight |
120g |
||
|
Product size |
175mm x
70mm x 38mm |
||
|
Standard accessories |
Battery,
RS-232 interface cable, PC software CD |
||
|
Standard individual packing |
Gift box,
carrying bag, English manual, tool box |
||
|
Standard quantity per carton |
6pcs |
||
|
Standard carton measurement |
385mm x
290mm x 115mm |
||
|
Standard carton gross weight |
3.3kg |
||
