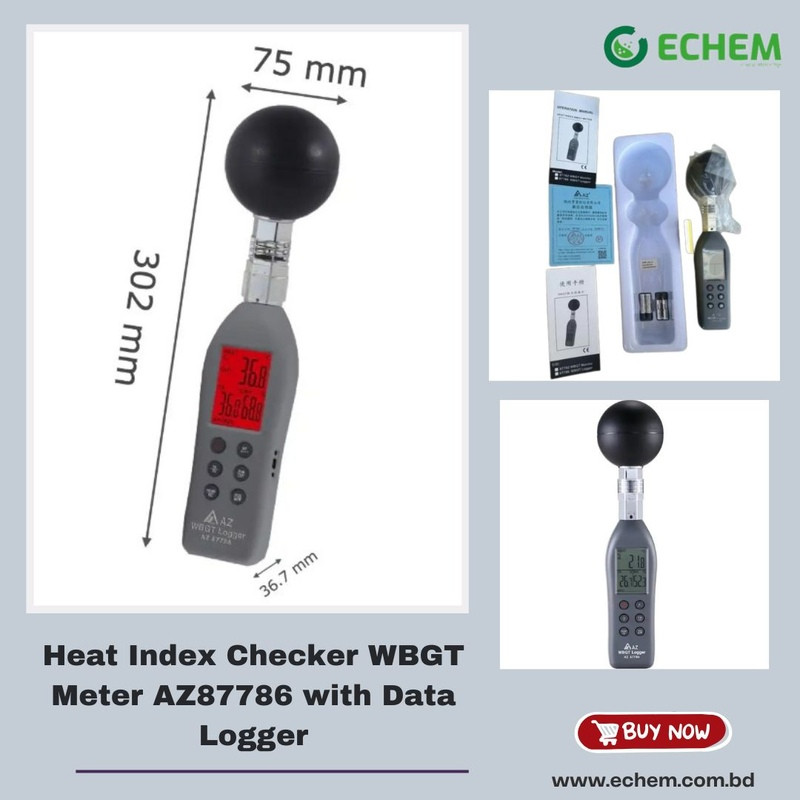

Heat Index Checker WBGT Meter AZ87786 with Data Logger

Heat Index Checker WBGT Meter AZ87786 with Data Logger

The Wet Bulb Globe Temperature (WBGT) is a composite temperature used to estimate the effect of temperature, humidity, wind speed and solar radiation on humans.

The Handy 87786 AZ WBGT Data Logger could measure air temperature, globe temperature, and humidity to give heat stress index for using in control of physical activity in hot environment to limit the danger of heat-related injuries.

The 87786 AZ Portable WBGT Data Logger can show the different backlight color to distinguish the different temperature value/level. There are 4 kinds of WBGT indicator as follows,
1. Green back light: 26.7~29.4℃
2. Yellow back light: 29.4~31℃
3. Red back light: 31~32℃
4. Red Flashing back light: above 32.2℃

So the 87786 AZ Portable WBGT Data Logger could be the best tool for monitoring the outdoor activities and Prevent people to get Heat Stroke.

The 87786 AZ Portable WBGT Recorder could be operated by industrial hygienists, athletes and the military to determine appropriate exposure levels to high temperatures. Military agencies, OSHA and many nations use the WBGT as a guide to manage workload in direct sunlight.

User could record and download the real time value of 87786 AZ Portable WBGT Recorder via mini USB cable to PC for data analysis. There is no need to install USB driver or software before operating logging function. It could be operated as the USB memory flash drive easily on PC. And there is a tripod hole on the bottle of 87786 AZ Portable WBGT Recorder. User could use the tripod to hold the device vertically for long term use.
It could be applied for measuring the WBGT value in construction, iron and steel foundries, bricks-firing plants, glass facilities, boiler rooms, mining sites, army training, marathon, beach activities and so on.

87786 AZ Portable WBGT Recorder was being designed and manufactured by AZ Instrument, a well experienced manufacturer for Environmental Measuring.

Specification of 87786 AZ Portable Heat Index Checker WBGT Recorder:

Model	87786
Temperature Range	0~50℃
Temperature Resolution	0.1℃, 0.1℉
Temperature Accuracy	±0.6℃
Humidity Range	0.1~99.9% RH
Humidity Resolution	0.1% RH
Humidity Accuracy	±3%RH (at 25℃, 10~90%RH); others ±5%RH
Global Temperature (Inside Black Ball)	0~80℃
Global Temp. Accuracy (Indoor)	±1℃at 15~40℃, others ±1.5℃
Global Temp. Accuracy (Outdoor)	±1.5℃at 15~40℃, others ±2℃
WBGT Temperature Range	0~50℃
WBGT Alarm Range	20~50℃
Sampling Rate	1, 5, 10, 30, 60, 90, 120 mins
Start Delay Time	0, 5, 30, 45, 60, 90, 120 mins
Memory Points	12000 readings, each contains WBGT, TA, TG, and RH
Black Ball Size	Diameter 75 mm, Height 75 mm
Stabilization Time	15~25 minutes typical
RH% Self Calibration	With 33% & 75% Salt Bottle
Operating Temperature	0~50℃
Operating RH%	Humidity ＜80%
Storage Temperature	-20~50℃
Storage RH%	Humidity ＜90%
LCD Size	50(L) * 32(W) mm
Meter Size	302(L) * 75(W) * 36.7(H) mm
Weight	~300g
Battery	AAA*4PCS
Battery Life	~200 hours
Standard Package	Meter, Batteries, Manual, Mini USB cable, Paper Box

**This item is not part of our ready stock. It will be supplied within 15-30 days upon order confirmation and receipt of 50% advance payment**



If you'd like to know more about this chemical or need any analysis report regarding this chemical then contact us:  support@echem.com.bd.

Heat Index Checker WBGT Meter AZ87786 with Data Logger

1. Simultaneously display WBGT, temperature & humidity
2. Check Indoor/Outdoor WBGT, TA/TG & Humidity
3. Plug & Play. Software and USB driver are not required
4. Generate csv report without additional PC software
5. Completely user re-programmable. 8 languages, sampling rate, start delay time and ID setting
6. One button switch to check Air/ Globe temperature & In/Out WBGT
7. Designed with capacitance type humidity sensor to get accurate and quick reading
8. Backlight indicator function (Green,yellow, red, flashing red) as WBGT condition reminder
9. Easy-to-read big LCD display with 6 dust proof rubber keys
10. Clear sheath to protect humidity sensor during storage
11. Filter to protect humidity sensor from dust scratch during operation
12. 75 mm black metal ball to measure globe temperature
13. Temperature unit ℃/℉ switchable
14. Hold function to freeze reading and Max/Min function included
15. Battery low indicator & Sleep mode can be disabled
16. Tripod receptacle design for long time use
17. Audible beeper for danger zone warning
18. Humidity self-calibration via salt bottles kit
