UNI-T UT261B Phase Sequence and Motor Rotation Indicator
Price :
৳5746.85
Estimated Shipping Time: Deliveries take up to 2-3 days after you place your order.
Uses: Lab Essentials
Product SKU: UzH8554AaL

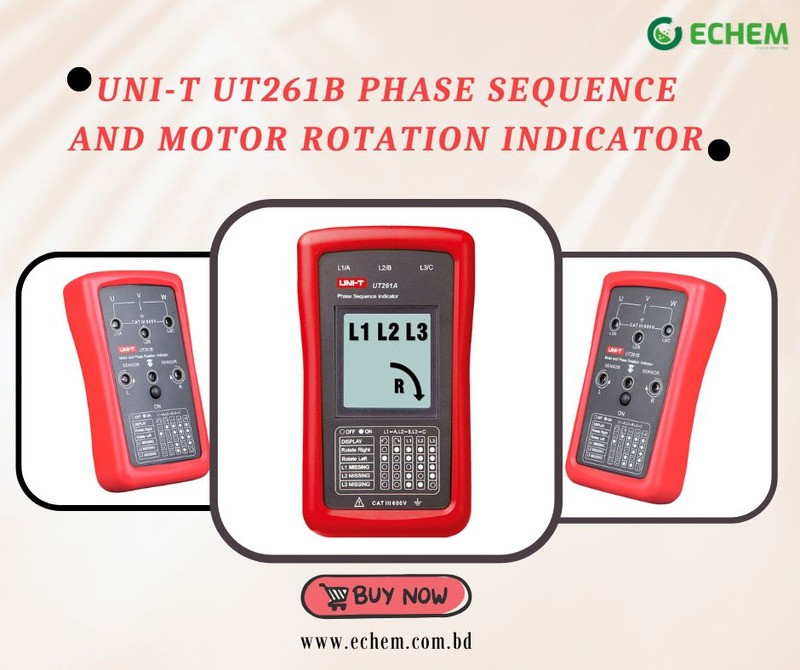

UNI-T UT261B Phase Sequence and Motor Rotation Indicator
UT261B Phase Sequence meter is used for determining the 3-phase power phase sequence, missing phase indication, and motor phase rotation. UT261A and UT261B can measure AC voltage of 40~700V and 90~600V respectively. These devices can operate in a frequency range of 15~400Hz. UT261 are durable devices that can withstand impact from 2 meters height. Test leads with protective tubing are included in optional accessories.
Specifications
Range
UT261B
AC voltage (V)
90V~600V
√
Frequency (Hz)
15Hz~400Hz
√
Working current (A)
<3mA
Features
Phase sequence indication
LED
Missing phase indication
LED
Motor rotation indication
LED
General Characteristics
Power
9V battery (6F22)
Product Color
Red and grey
Product net weight
180g
Product size
123mm x 71mm x 29mm
Standard accessories
Battery, test lead with alligator clip x 3
Standard individual packing
Gift box, English manual, carrying bag
Standard quantity per carton
20pcs
Standard carton measurement
450mm x 325mm x 340mm
Standard carton gross weight
10.3kg
If you'd like to know more about this chemical or need any analysis report regarding this chemical then contact us: support@echem.com.bd.
UNI-T UT261B Phase Sequence and Motor Rotation Indicator
- 1000A AC measurement
- 1000V AC/DC voltage measurement
- ACV frequency 10Hz～10kHz
- Jaw opening: 45mm
- Resistance/capacitance/frequency measurement
- Auto range/backlight / low battery indication
- Continuity/diode/duty cycle
- MAX/MIN
- Data hold/flashlight / relative mode
- Auto power off
- CAT II 1000V/CAT III 600V
